Automatic Industrial Digital Printing Machines For Cloth Kyocera Head 1800 mm

Model Number : YS1800/3200

Certification : ISO

MOQ : 1 set

Price : negotiation

Supply Ability : 10 sets per month

Delivery Time : 20 working days after received deposit

Packaging Details : Packed in wooden case

Printer head : Four to eight Kyocera head (optional)

Cloth conveyance mode : Guide belt

Max. printing wide : 1.8m

Clothe output mode : Automatic take-up

Cloth length : No limited

Thick of cloth : Cloth (0～30mm)

Head clean system : Positive pressure and wiper

Ink suitable : Acid,reactive,disperse,pigment

Power frequency : 50HZ/60HZ ±1HZ

Weight : 4000kilos

Contact Now

Automatic Industrial Digital Printing Machines For Cloth Kyocera Head 1800 mm

Industrial Belt Digital Fabric Printing machine kyocera head width 1800mm

A. Main specifications:

Product mode		TLDP-k1800
Print head		4-8 Kyocera print head(optional)
Maximum printing width		1800mm
Medium conveyance mode		Guide belt conveyance
Maximum printing resolution		1200DPI*1200DPI
Print speed	1 pass	180-250 m2/hour
	2 pass	90-120m2/hour
	3 pass	55-85m2/hour
Print software		Neostampa/Texprint (origin)
Ink supply system		Peristaltic pump supply,degassing NEG pressure system
Dryer unit		Aluminum foil heater,infrared heater and hot fan heater
Medium output mode		Automatic winding
Ink Type		reactive , disperse or acid ink,pigment
Maximum medium length		No limited
Ink color		Cyan,Magenta,Yellow,Black,Orange, Red,Blue, Gray
Print head height		Height adjustable(0～50mm) to adapt medium of different thickness
Print head clean system		Positive pressure and wiper
Power voltage		380V,3-phase-4-wire+G(with independent reliable effective earth wire)
Power frequency		50HZ/60HZ ±1HZ
Power consumption		Printer 10kw,dryer 20kw
Printer		481022702100mm
Dryer unit		24509601650mm
Ink box		12807301250mm
Weight		4420kg
CBM		one 40 feet container

B. Description:

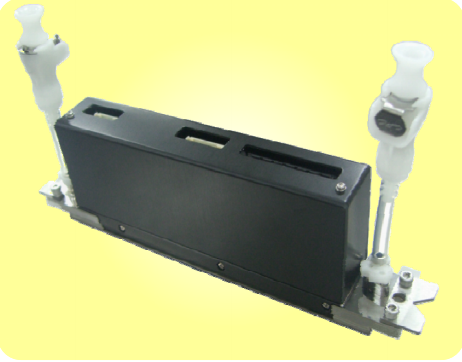

1) Printing head:kyocera no.: KJ4B-QA06NTB

Automatic Industrial Digital Printing Machines For Cloth Kyocera Head 1800 mm

Head Feature:

600 dpi High Density
High Speed 75m/min (Single Pass Printing)
Print Width 108mm

2) Ink suitable:

Acid inks – on polyamide lycra, wool, silk
Pigment ink - any kind of fabric
Reactive inks – on all natural fibers such as cotton,silk,wool,etc
Disperse inks – directly onto polyester and blends

3) Main parts imported :

Printhead:Kyocera Japan
Software:TEXPRINT
Japan Panasonic servo motor & German speed reducer.
Fabric transportation: Habasit industrial belt.Origin from Swiss Habasit.
Printhead moving guider :Germany

5) Ourself reseach and develope system:

Machine body ,operating platform
Printing control and operating system
Ink supply system

6) Main feature:

Ink supply:peristaltic pump supply,degassing NEG pressure system.
One set machine need 2 operators,2 sets three operators.
Belt-transporting system,integrated fabric feeding & take-up system,fabric spreading , fabric entry unit.
Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
Transducer & photoelectric sensor system, while fabric not flat or upwarp ,it will alarm, and printhead will stop working.One set of this system installed beside belt,another one beside printhead.

7) Warrantee:

One year guarantee,including install,testing and training in your factory.

C. Applications:

Automatic Industrial Digital Printing Machines For Cloth Kyocera Head 1800 mm
